Above 65% of new broadband deployments in urban U.S. projects now specify fiber-to-the-home. This accelerated move toward full-fiber networks underscores the growing need for high-performance production equipment.
SZ Stranding Line
Fiber Secondary Coating Line
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines together with control systems. This system turns out drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, together with LANs.
That advanced FTTH cable making machinery offers measurable business value. It enables higher throughput as well as consistent optical performance featuring low attenuation. This system also meets IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs as well as material waste through automation. Full delivery services cover installation together with operator training.

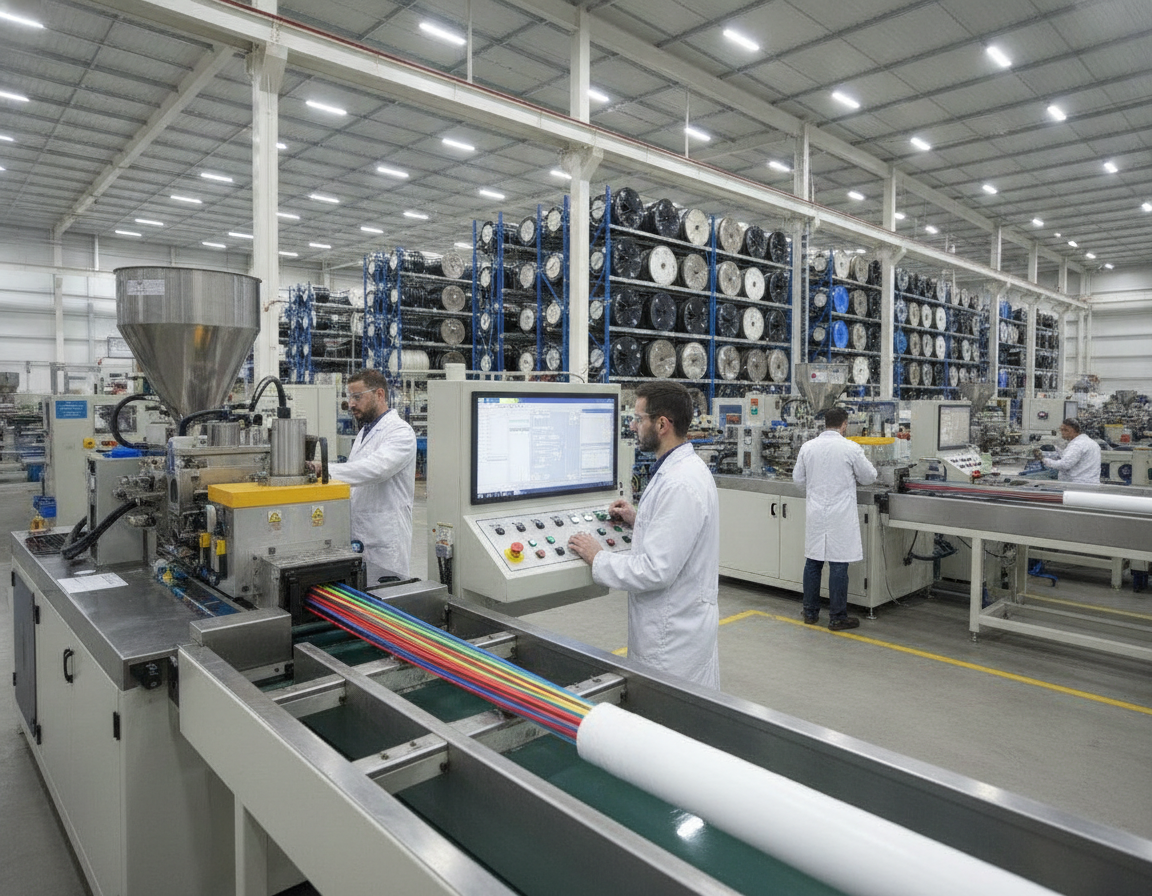

The FTTH cable production line package includes fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also adds SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, as well as rapid troubleshooting. This system also delivers lifetime technical support and operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable making machinery reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
This fiber optic cable manufacturing process for FTTH calls for precise control at every stage. Producers rely on integrated lines that combine drawing, coating, stranding, as well as sheathing. That setup boosts yield together with speeds up market entry. It addresses the needs of both residential together with enterprise deployments in the United States.
Below, we review the core components as well as technologies driving modern manufacturing. Each module must operate featuring precise timing and reliable feedback. The choice of equipment affects product output quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering as well as extrusion systems deliver 600–900 µm jackets for indoor and drop cables.
SZ stranding lines use servo-controlled pay-off as well as take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs as well as UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers as well as basic controls. Modern facilities shift toward PLC-controlled, synchronized systems using touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable manufacturing together with lowers labor dependence.
Key Technologies Driving Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Module | Benefit |
|---|---|---|
| Optical fiber drawing | Draw tower with automated tension feedback | Uniform core size and low attenuation |
| Secondary coating | Dual-layer UV curing coaters | Uniform 250 µm coating for durability |
| Fiber coloring | Multi-channel coloring machine | Precise identification for splicing and installation |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Consistent lay length for ribbon and loose tube designs |
| Extrusion & sheathing | Efficient extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Quality testing | Inline attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. That decision enables efficient automated fiber optic cable line output as well as positions companies to deliver on scale and quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. That protects the glass during handling.
Producers aiming for high-yield, high-output fiber optic cable line output must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws as well as barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, together with PLC/HMI platforms from Siemens or Omron provide robust control as well as monitoring for continuous runs.
Operational parameters guide preventive maintenance together with process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-output fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This process step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, as well as geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| System Feature | Function | Target Value |
|---|---|---|
| Multi-zone furnace | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Online diameter feedback control | Preserve core/cladding geometry and lower attenuation | Diameter tolerance of ±0.5 μm |
| Tension and cooling management | Prevent microbends and control fiber strength | Defined tension by fiber type |
| Automated pay-off integration | Smooth transfer to coating and coloring | Synced feed rates for zero-slip transfer |
| Inline test stations | Verify loss, strength, and geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology In Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness as well as boost flexibility. That makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in consistency control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning featuring secondary coating lines. UV curing at speeds over 1500 m/min ensures color together with adhesion stability for both ribbon together with counted fibers.
The following sections discuss standards together with coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, as well as coating flaws. The PLC/HMI interface alerts to issues as well as can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye as well as other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model lowers ramp-up time together with enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling together with centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the rely on of steel tape or wire units with adjustable tension as well as wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. The line also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding together with sheathing lines. These solutions include operator training as well as maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Those points reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Advanced data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method relies on parallel processes as well as precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy together with speed in manufacturing. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation together with geometry testing reduce rework, maintaining high yields.
Compact fiber unit manufacturing focuses on tight tolerances together with material choice. Extrusion and buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible using MPO trunking and high-count backbone systems.
Production controls and speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Feature | Fiber Ribbon Line | Compact Fiber Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical Speed | Up to roughly 800 m/min | Around 600–800 m/min | Higher throughput for large deployments |
| Key Processes | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Improved geometry consistency with lower insertion loss |
| Material set | Specialized tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long-term reliability and safety compliance |
| Inspection | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Reduced field failures and faster deployment |
| Line integration | Sheathing integration and splice-ready stacking | Modular compact units for dense cable solutions | Simplified MPO trunking and backbone construction |
How To Optimize High-Speed Internet Cables Production
Efficient fast-cycle fiber optic cable production relies on precise line setup as well as strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, together with tension systems. This supports optimal output for flat, round, simplex, together with duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 as well as 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
How Optical Fiber Drawing Meets Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-output quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, as well as local after-sales support. Top FTTH cable production line manufacturers offer turnkey layouts, remote monitoring, together with operator training. That reduces ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
